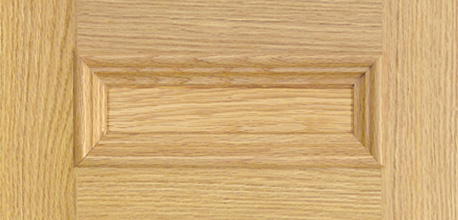

Model 40-S-I
MAX. SIZE
24" x 20"
24" x 20"
TO
MIN. SIZE
10" x 5" 1/2
10" x 5" 1/2
RAIL PROFILE
SHAKER with Insert
Insert Styles I-01, I-02, I-03, I-04, I-05, I-J

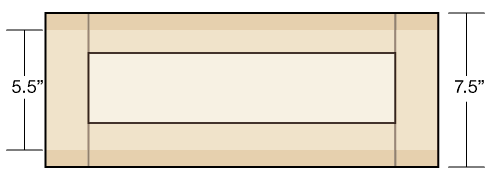

Min is 7 1/2" for 2 1/4" styles & rails.
Any draws under 7 1/2" will have top and bottom rails trimmed down to a minium of 5 1/2" height on all fronts.
PANEL PROFILES
INTERIOR | Plywood
Exterior Profiles
All doors will de finished with S Square Edge if not specified.
Exterior profiles available in WOOD doors.
Exterior profiles available in WOOD doors.
Exterior | A
Exterior | B
Exterior | C
Exterior | D
1/4" bevel
1/4" bevel
Exterior | D
1/8" bevel
1/8" bevel
Exterior | E
Exterior | G
Exterior | H
Exterior | O
Exterior | R
1/4" bevel
1/4" bevel
Exterior | R
1/8" bevel
1/8" bevel
Exterior | S
Square Edge
Square Edge
Exterior | W
Exterior | Z
